Rheemalloy
The proven choiceThe proven, traditional Cesco barrel steel: the high-quality steel Cesco has built its name on, matched to everyday loading and mixing environments where a barrel simply has to keep turning, year after year.
Barrels
Built the way a barrel should be.

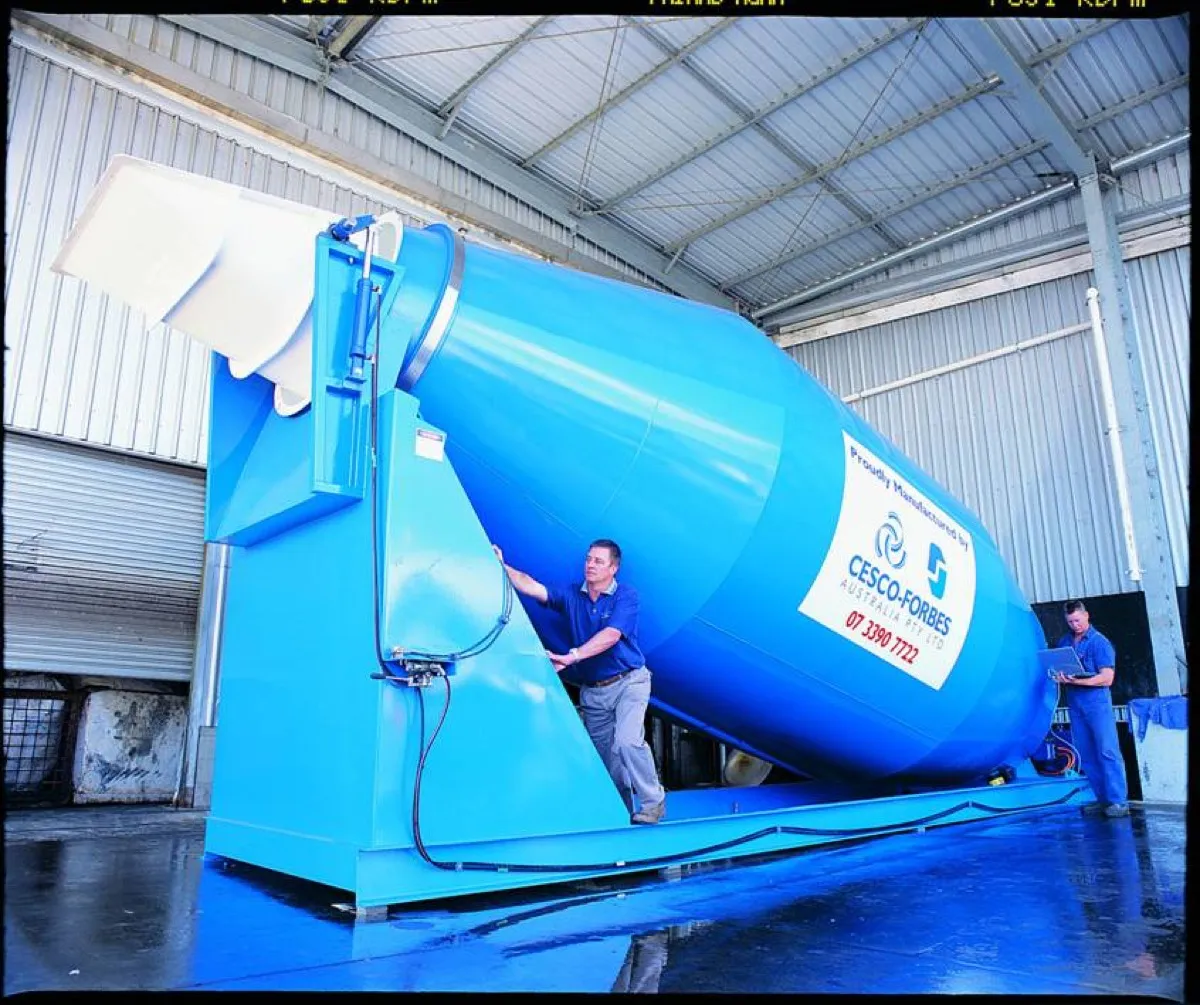

Rheemalloy or Hardox steel. Eight press-formed blade segments. Joggle-joint seams, fillet welded. Every Cesco barrel is built on blade presses and know-how refined since 1946.
Barrel Steel
Two steels. One choice that matters.
The best barrel for your mixer is determined by the working environment you operate in and the performance you demand. That decision starts with the steel.
Hardox
The payload saverThe lightweight option for operators counting every kilogram. A Hardox barrel trims tare weight to make room for payload. It’s the standard barrel on our Weight $aver and an option on models like the Low Rider.
Not sure which suits your work? Your barrel contact will talk you through it. Capacity should closely suit your loading and mixing environment.
The Pressed Blade System
A world first, pressed into every barrel.

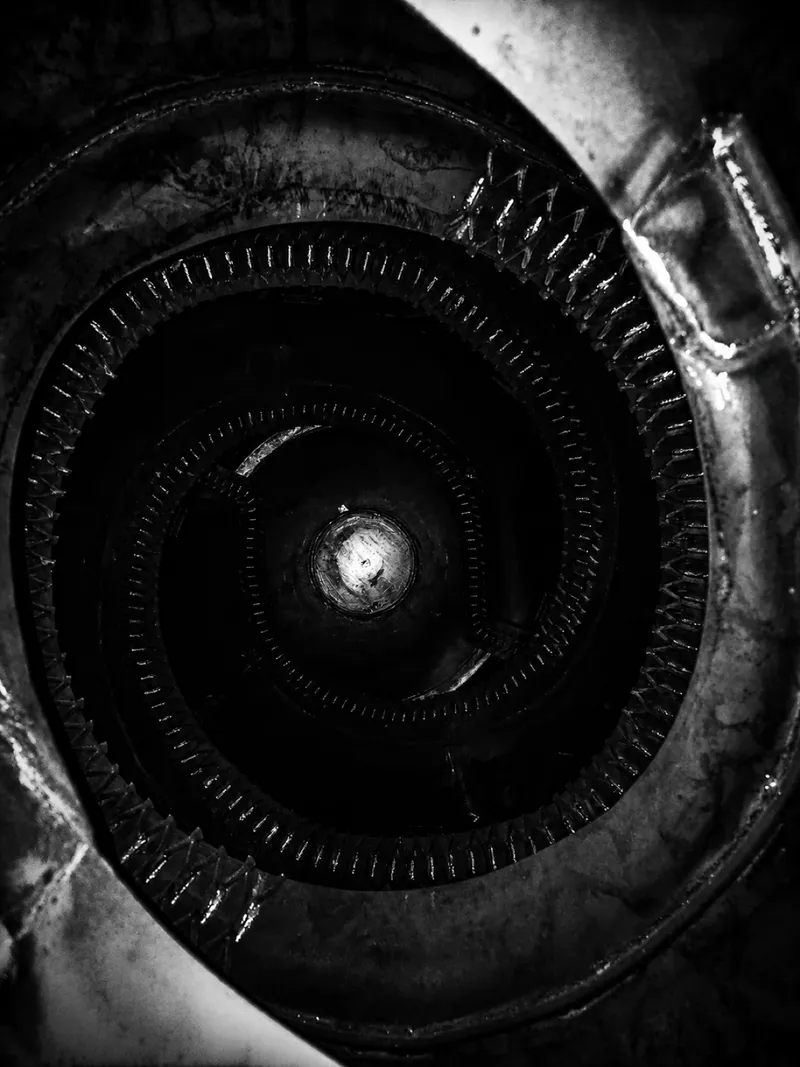

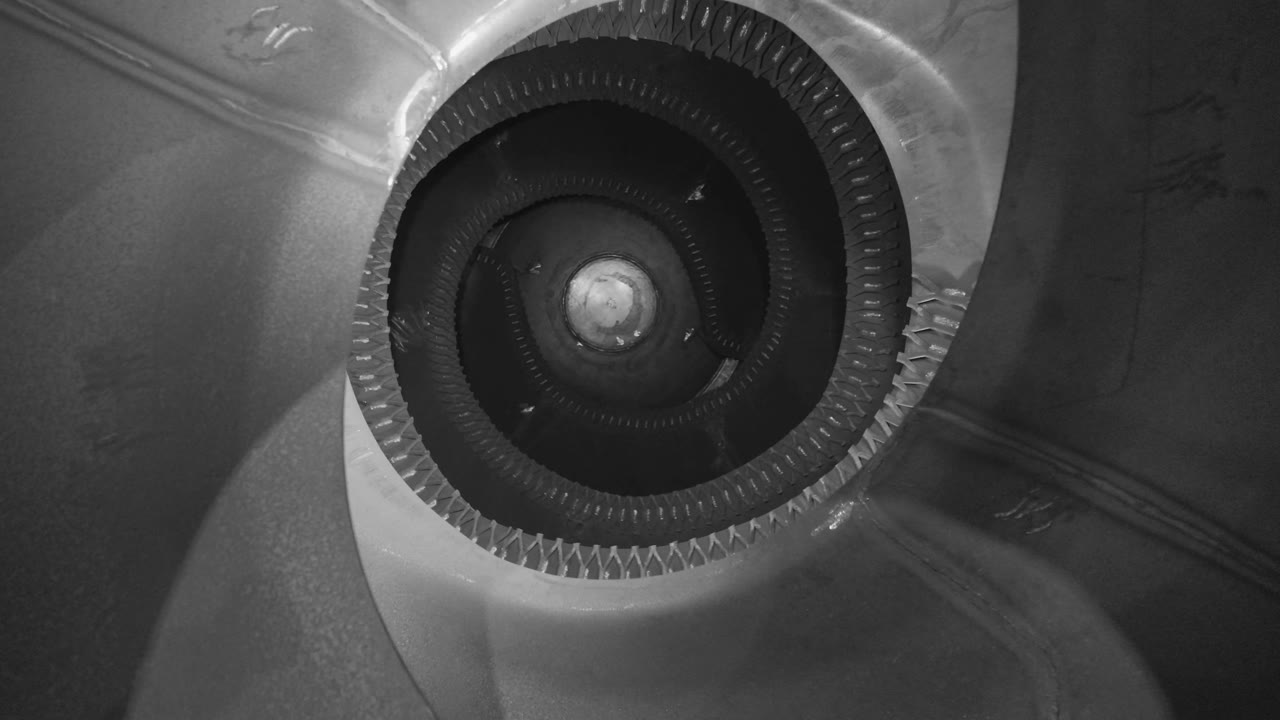

Cesco’s competitive advantage is a pressed blade system of eight specific segments, delivering precise pitch and spiral through the barrel. The blade design (and the presses that form it) were perfected during the Snowy Mountains Scheme.
- Eight specific blade segments: precise pitch and spiral
- Mix uniformity guaranteed up to 50mm slump
- Approved by NATA laboratories, manufactured to Australian Standard AS 1379
- Press-formed blades eliminate re-flighting cost and inconvenience
- Blade mesh gives extra foundation and stops blades splitting
Construction
The details you can’t see from the road.
A barrel earns its keep at the seams, the band and the welds. This is where a Cesco barrel is different, and why it stays in service.
Joggle-joint seams, fillet welded
Barrel sections are joined with joggle-joint seams finished with fillet welding: construction considerably stronger than the butt welds commonly used elsewhere.
Wear-resistant centre band
A wear-resistant centre band protects the shell where the work (and the wear) concentrates.
High-quality track ring welds
The welds around the track ring guard against barrel split, so the barrel stays true on its rollers for the long haul.

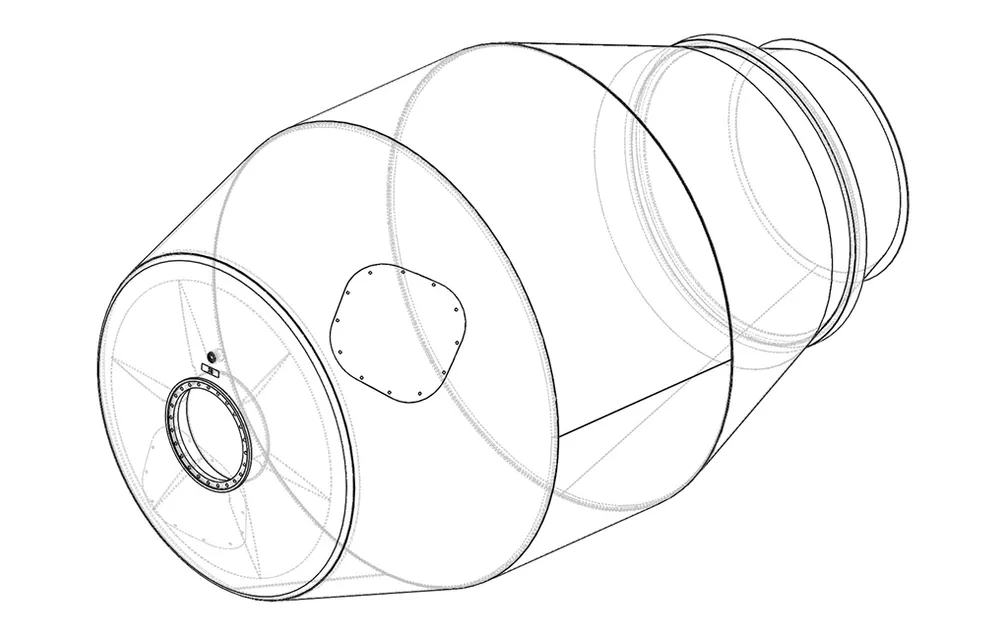

Reinforced dished end
The dished end carries an internal chamber for double reinforcing at the closed end of the barrel.
Mix Uniformity, Guaranteed
The numbers behind the guarantee.
- 8Pressed blade segments, precise pitch and spiral
- 50mmSlump: mix uniformity guaranteed
- AS 1379Australian Standard for mix uniformity
- NATALaboratory approved blade system
Talk Barrels
Talk to a barrel specialist.
Call the barrel contact for your state. Running another make? Ask about Cesco barrels to suit other makes, built with the same pressed-blade construction.
Brian
Barrel sales
QLD, MurarrieRay M
Barrel sales
NSW, SydneyMitch
Barrel sales
VIC, Hallam
