Spare Parts

The popular parts, by the numbers.

The parts fleets order most, listed with Cesco part numbers, kit contents and service exchange options, so the right part is on its way with one call.

How this works:

Hit Add to enquiry on each part you need. Click it again for more than one. When you're done, review the list and send it to the parts team in one go. Or just call (07) 3908 6032.

Chutes & Chute Pump

  • Cesco Swivel Chute, 4mm Long

    Cesco Swivel Chute, 4mm Long

    Part No. 031-508401

    Fully painted Cesco swivel chute (also available primed only).

  • Chute Scraper, Complete

    Chute Scraper, Complete

    Part No. 022-508400

    Complete chute scraper assembly.

  • Round Feed Chute, Bolt-on Cradle, Painted

    Round Feed Chute, Bolt-on Cradle, Painted

    Part No. 030-508439

    Fully painted Cesco round feed chute assembly (also available primed only).

    What’s in the kit
    • Cradle, Common Sq & Round Feed Chute030-500849: Cradle only
    • Cesco Round Feed Chute, Bolt-on030-500847: Round chute only
    • Feed Chute Bolt Kit305-517135: Bolt kit only
  • Ram Cylinder 3", Double Acting c/w Valve

    Ram Cylinder 3", Double Acting c/w Valve

    Part No. 034-502758

    Hydraulic ram cylinder for the swivel chute (also available primed only).

  • Chute Extension Assembly, Lightweight

    Chute Extension Assembly, Lightweight

    Part No. 034-508428

    Lightweight steel frame, poly-lined chute extension. One chute set = 2 x extension + 1 x placement.

    What’s in the kit
    • Extension Chute Frame, Lightweight034-508308: Frame only
    • 5mm Extension Chute Liner, Lightweight034-502732: Liner only
  • Chute Placement Assembly, Lightweight

    Chute Placement Assembly, Lightweight

    Part No. 034-508429

    Lightweight steel frame, poly-lined chute placement.

    What’s in the kit
    • Placement Chute Frame, Lightweight034-508309: Frame only
    • 5mm Placement Chute Liner, Lightweight034-502731: Liner only

Cooling & Filtration

  • 12V Fan / Motor Combo

    12V Fan / Motor Combo

    Part No. 065-500340

    12 volt combination fan and motor.

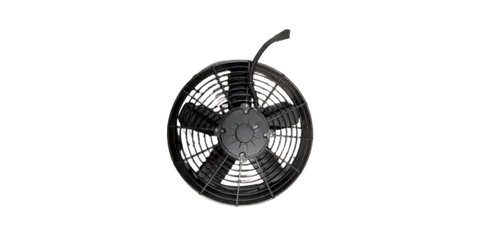

  • 12V All-in-One Cooler Fan

    12V All-in-One Cooler Fan

    Part No. 065-500400

    12 volt all-in-one cooler.

  • Photo on request

    24V Fan / Motor Combo

    Part No. 065-500339

    24 volt combination fan and motor.

  • Photo on request

    24V HYDAC Cooler Fan

    Part No. 065-500399

    24 volt all-in-one HYDAC cooler.

  • Cesco All-in-One Cooler 12V

    Cesco All-in-One Cooler 12V

    Part No. 065-500920

    12 volt Cesco all-in-one cooler. Uses SOFIMA Kaitong filter element 065-500370.

  • Photo on request

    Cesco All-in-One Cooler 24V

    Part No. 065-500934

    24 volt Cesco all-in-one cooler. Uses SOFIMA Kaitong filter element 065-500370.

  • Filter Element, SOFIMA Kaitong

    Filter Element, SOFIMA Kaitong

    Part No. 065-500370

    For Cesco all-in-one coolers, 12V and 24V (new production).

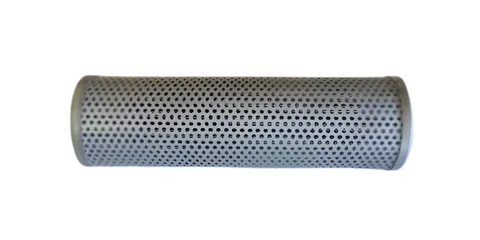

  • Filter Element, Rexroth

    Filter Element, Rexroth

    Part No. 065-508765

    Rexroth oil filter for the old-style round Rexroth oil reservoir.

  • Filter Element, HYDAC In-Tank

    Filter Element, HYDAC In-Tank

    Part No. 065-500913

    HYDAC intake oil filter for M.A./ATT oil reservoirs.

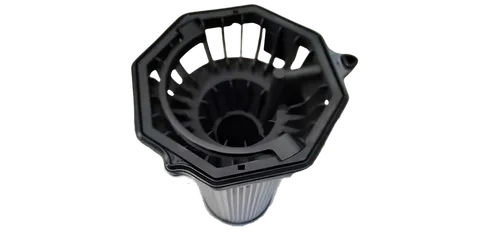

  • Filter Element, HYDAC All-in-One

    Filter Element, HYDAC All-in-One

    Part No. 065-516221

    HYDAC filter element for the HYDAC all-in-one cooler.

Water System

  • 200L Alloy Pressure Water Tank

    200L Alloy Pressure Water Tank

    Part No. 050-506302

    200 litre pressurised alloy water tank.

  • 300L Alloy Pressure Water Tank

    300L Alloy Pressure Water Tank

    Part No. 050-506303

    300 litre pressurised alloy water tank, painted or primed.

  • Deadman Valve 1"

    Deadman Valve 1"

    Part No. 050-503160

    1 inch deadman valve.

  • Deadman Valve 3/4"

    Deadman Valve 3/4"

    Part No. 050-503187

    3/4 inch deadman valve.

  • Directional Control Valve 12V

    Directional Control Valve 12V

    Part No. 034-504797

    Chute raise and lower directional control valve for double-acting cylinders.

  • Alloy Watergun Replacement Kit

    Alloy Watergun Replacement Kit

    Part No. 050-500024

    High-pressure alloy water gun kit.

    What’s in the kit
    • High Pressure Water Gun, Alloy050-503004: Water gun only
    • Hose Clamp Utilux H041050-503683: Clamp only
    • Hose Tail, 1" BSP x 1" Nylon050-503090: Hose tail only

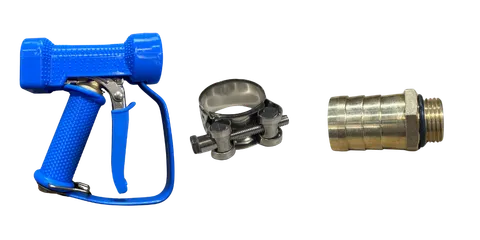

  • Blue Washdown Gun Kit

    Blue Washdown Gun Kit

    Part No. 080-500024

    Blue RB65 washdown gun kit.

    What’s in the kit
    • Washdown Gun, Blue RB65050-503018: Water gun only
    • Hose Clamp Utilux H041050-503683: Clamp only
    • Hose Tail, Brass 1" x 1/2" BSP050-503098: Hose tail only

Gearboxes, Pumps & Motors

  • Gearbox ZF P4300 135.3:1

    Gearbox ZF P4300 135.3:1

    Part No. 025-503897

    For 8-wheelers. Painted (also available primed only).

    Service exchange · 025-503897-EX

  • Gearbox 577L Trasmital 131:1

    Gearbox 577L Trasmital 131:1

    Part No. 025-500342

    For 8-wheelers. Painted (also available primed only).

  • Gearbox ZF P3301 144:1

    Gearbox ZF P3301 144:1

    Part No. 025-503899

    For 6-wheelers. Painted (also available primed only).

  • Gearbox 580L Trasmital 131:1

    Gearbox 580L Trasmital 131:1

    Part No. 025-500343

    For 10-wheelers.

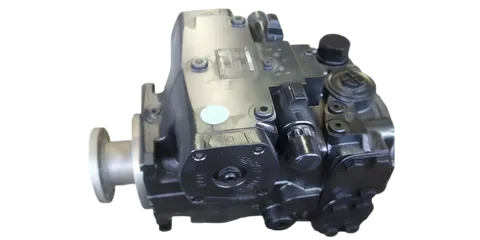

  • Pump Rexroth EDC 71cc

    Pump Rexroth EDC 71cc

    Part No. 027-500352

    For 6 and 8-wheelers.

    Service exchange · 027-500352-EX

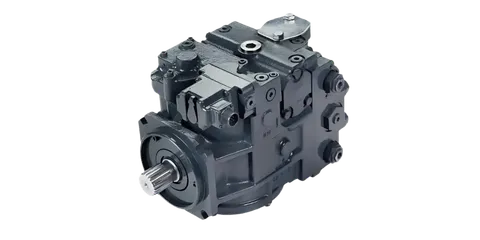

  • Pump Rexroth EDC 90cc A4VTG90EP

    Pump Rexroth EDC 90cc A4VTG90EP

    Part No. 027-500369

    For 10-wheelers.

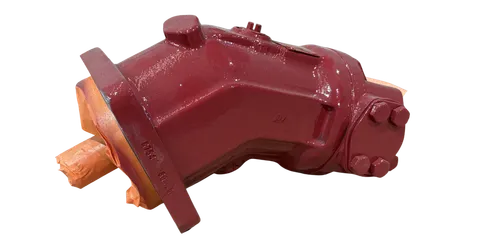

  • Motor Rexroth 56cc

    Motor Rexroth 56cc

    Part No. 026-500353

    Painted (also available primed only).

    Service exchange · 026-500353-EX

Guards

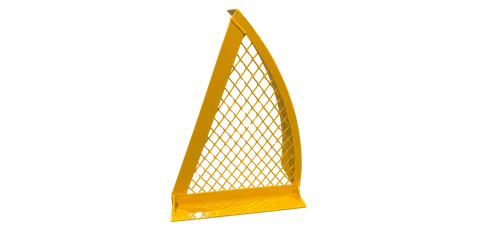

  • Barrel Guard, Deep Skirt, Driver Side

    Barrel Guard, Deep Skirt, Driver Side

    Part No. 022-512403

    Deep skirt barrel guard, driver side.

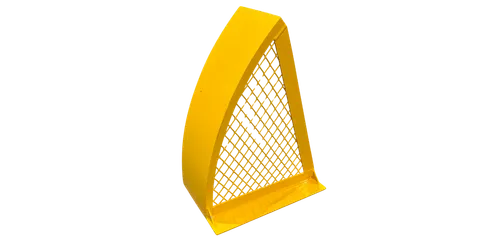

  • Barrel Guard, Deep Skirt, Passenger Side

    Barrel Guard, Deep Skirt, Passenger Side

    Part No. 022-512404

    Deep skirt barrel guard, passenger side.

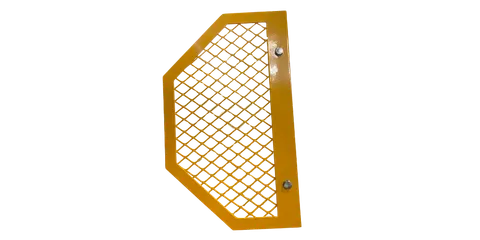

  • Trunnion Roller Guard, A-Frame

    Trunnion Roller Guard, A-Frame

    Part No. 022-508846

    Fits passenger or driver side (same shape).

COR Concrete Remover

  • COR Super Gel 200L

    COR Super Gel 200L

    Part No. 310-500885

    Cesco COR Super Gel for barrel, mixer frame, truck chassis, cab and elements (full truck).

  • COR Super Gel 1000L

    COR Super Gel 1000L

    Part No. 310-500889

    Cesco COR Super Gel for barrel, mixer frame, truck chassis, cab and elements (full truck).

  • Photo on request

    Cesco Organic Concrete Remover 200L

    Part No. 310-500881

    COR daily wash concrete remover for the full truck.

Beyond the Popular List

Need something not shown here?

This page covers the fast movers. The full catalogue runs to fourteen illustrated sections, and the parts team can help you pin down the exact part number.
